Model 4600 Light parts breakdown
|
 |
1 - Potted Can
The potted can assembly comes complete with the "Copper Can", "Power Cord" and "Porcelain Bulb Socket" It is available with 10ft, 20ft, 30ft, 40ft, and 50ft, cord lengths.
|
84210 |
10ft cord - Potted Can |
|
|
|
 |
2 - Porcelain Socket
The porcelain bulb socket is the only serviceable part in the potted can. Comes as pictured with socket and wire leads.
85248 |
Porcelain Light Socket |
|
|
 |
3 - 200W Bulb
The 200W 120V PAR46 bulb is available in either NSP (narrow spot) or MFL (medium Flood)
|
84002 |
NSP - Narrow Spot 200W 120V PAR 46 |
|
|
84009 |
MFL - Medium Flood 200W 120V PAR 46 |
|
|
|
 |
4 - Bottom Flange
The bottom flange is cast brass and is threaded in order to receive the bolts.
85207 |
Threaded Bottom Flange |
|
|
|
5 - Glass Lens
The lenses are constructed out of glass and are available in six colors and clear.
|
84700 |
7" Clear Lens |
|
|
84701 |
7" Amber Lens |
|
|
84702 |
7" Turquoise Lens |
|
|
84703 |
7" Light Red Lens |
|
|
84704 |
7" Dark Red Lens |
|
|
84705 |
7" Blue Lens |
|
|
84706 |
7" Green Lens |
|
|
|
Lens Color |
Light Transmittance |
|
What do these numbers mean?
On the clear lens it means that 92% of the light is able to pass through the lens.
On the Green lens it means that 3% of the light is able to pass through the lens.
That is why the dark colors are only recommended in dimly lit areas.
|
Clear |
92% |
Use for maximum brilliance |
Amber |
55% |
Turquoise |
23% |
Light Red |
20% |
Dark Red |
7% |
Use only where other lighting will not interfere with fountain lighting. |
Blue |
3% |
Green |
3% |
 |
5A - Lens Gasket
The lens gasket is constructed out of red silicone.
84218 |
Red Silicone Gasket |
|
|
 |
6 - Top Flange
The top flange is cast brass and is NOT threaded. The holes in the flange are large enough the the bolts freely slide through them.
|
 |
7 & 8 - Stainless Steel Bolts
There are three different lengths of stainless steel bolts. Two for the mounting holes, four for the holes with the rock guard, and two for the remaining holes.
84220 |
1/4-20 x 1/2 (2) required |
|
87860 |
1/4-20 x 1 (2) required |
|
86101 |
1/4-20 x 1 1/4 (4) required |
|
|
 |
9 - Stainless Steel Rock Guard
84219 |
Rock Guard - stainless steel |
|
|
|

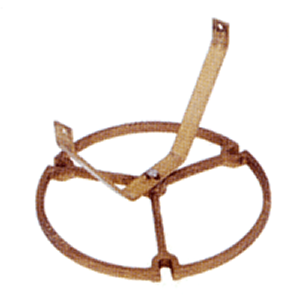

Bronze Base and Yoke
84011 |
Cast Bronze Base and Yoke complete |
|
85220 |
Base only, Cast Bronze |
|
84131 |
Bracket "Yoke" only - Brass |
|
84220 |
1/4-20 x 1/2" SS Bolt |
|
87274 |
Lockwasher
Split type 1/4" |
|
|
Complete 4600 Lights

4600 Lights with NSP (narrow spot bulb)
|
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
Price |
|
84211 |
4600 |
200w / 120v |
10 ft. power cord |
Clear |
|
|
84212 |
4600 |
200w / 120v |
10 ft. power cord |
Amber |
|
Call |
84213 |
4600 |
200w / 120v |
10 ft. power cord |
Turquoise |
|
Call |
84214 |
4600 |
200w / 120v |
10 ft. power cord |
Light Red |
|
Call |
84215 |
4600 |
200w / 120v |
10 ft. power cord |
Dark Red |
|
Call |
84216 |
4600 |
200w / 120v |
10 ft. power cord |
Blue |
|
Call |
84217 |
4600 |
200w / 120v |
10 ft. power cord |
Green |
|
Call |
| |
|
|
|
|
|
|
4600 Lights with MFL (medium flood bulb) |
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
Price |
|
84201 |
4600 |
200w / 120v |
10 ft. power cord |
Clear |
|
Call |
84202 |
4600 |
200w / 120v |
10 ft. power cord |
Amber |
|
Call |
84203 |
4600 |
200w / 120v |
10 ft. power cord |
Turquoise |
|
Call |
84204 |
4600 |
200w / 120v |
10 ft. power cord |
Light Red |
|
Call |
84205 |
4600 |
200w / 120v |
10 ft. power cord |
Dark Red |
|
Call |
84206 |
4600 |
200w / 120v |
10 ft. power cord |
Blue |
|
Call |
84207 |
4600 |
200w / 120v |
10 ft. power cord |
Green |
|
Call |
SPECIAL ORDER
4600 Lights with NSP (narrow spot bulb)
|
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
84231 |
4600 |
200w / 120v |
20 ft. power cord |
Specify |
84241 |
4600 |
200w / 120v |
30 ft. power cord |
Specify |
84260 |
4600 |
200w / 120v |
40 ft. power cord |
Specify |
84251 |
4600 |
200w / 120v |
50 ft. power cord |
Specify |
| |
|
|
|
|
4600 Lights with MFL (medium flood bulb) |
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
84267 |
4600 |
200w / 120v |
20 ft. power cord |
Specify |
84274 |
4600 |
200w / 120v |
30 ft. power cord |
Specify |
84281 |
4600 |
200w / 120v |
40 ft. power cord |
Specify |
84288 |
4600 |
200w / 120v |
50 ft. power cord |
Specify |
|
|
